Conectividad Router Dual Band Tp-Link 6 Antenas AC1900 1300Mbps + 600Mbps Archer C86

- INALAMBRICO
Estándares:Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
Velocidad WiFi: AC1900
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n)
Rango WiFi:3 Bedroom Houses

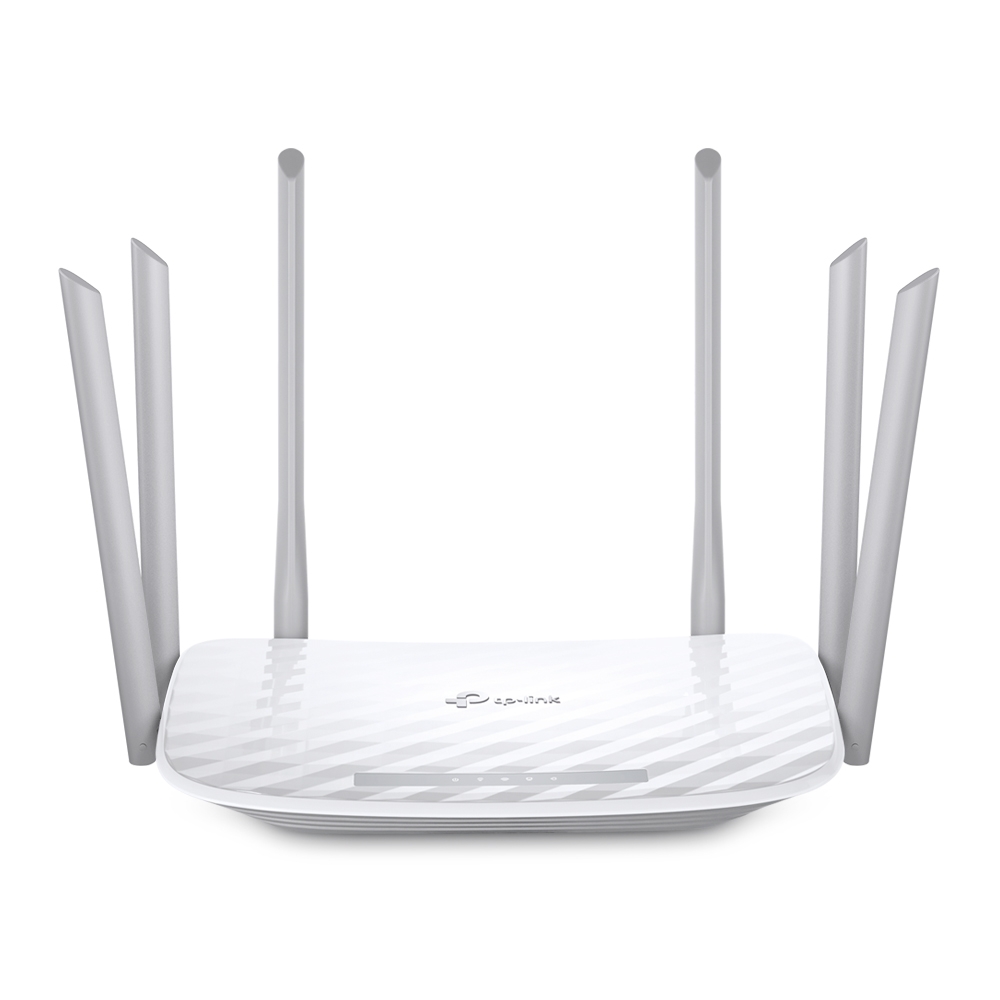

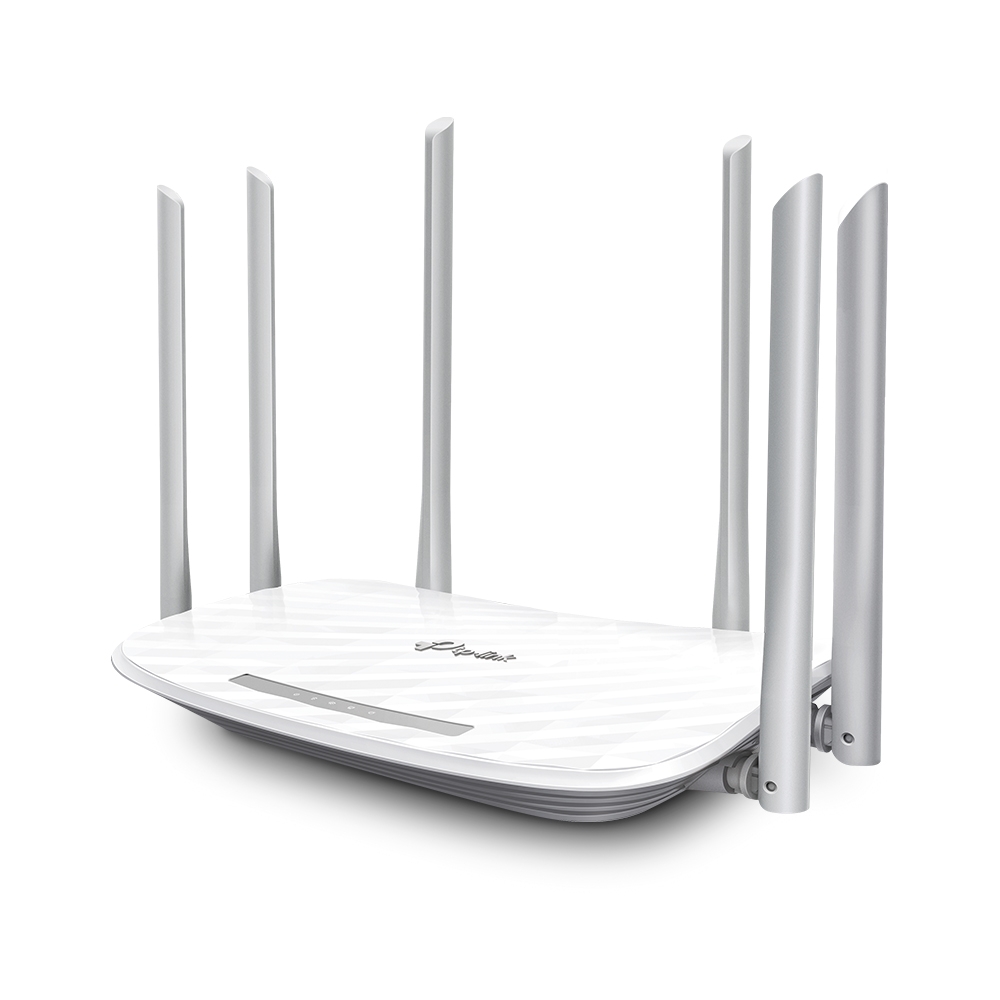

6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
Capacidad WiFi:Medium
Dual-Band
Allocate devices to different bands for optimal performance
3×3 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
Modos de trabajo:Router Mode
Access Point Mode
SEGURIDAD
Seguridad de la red:SPI Firewall
Access Control
IP MAC Binding
Application Layer Gateway
Red de invitados:1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
Cifrado WiFi:WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
HARDWARE

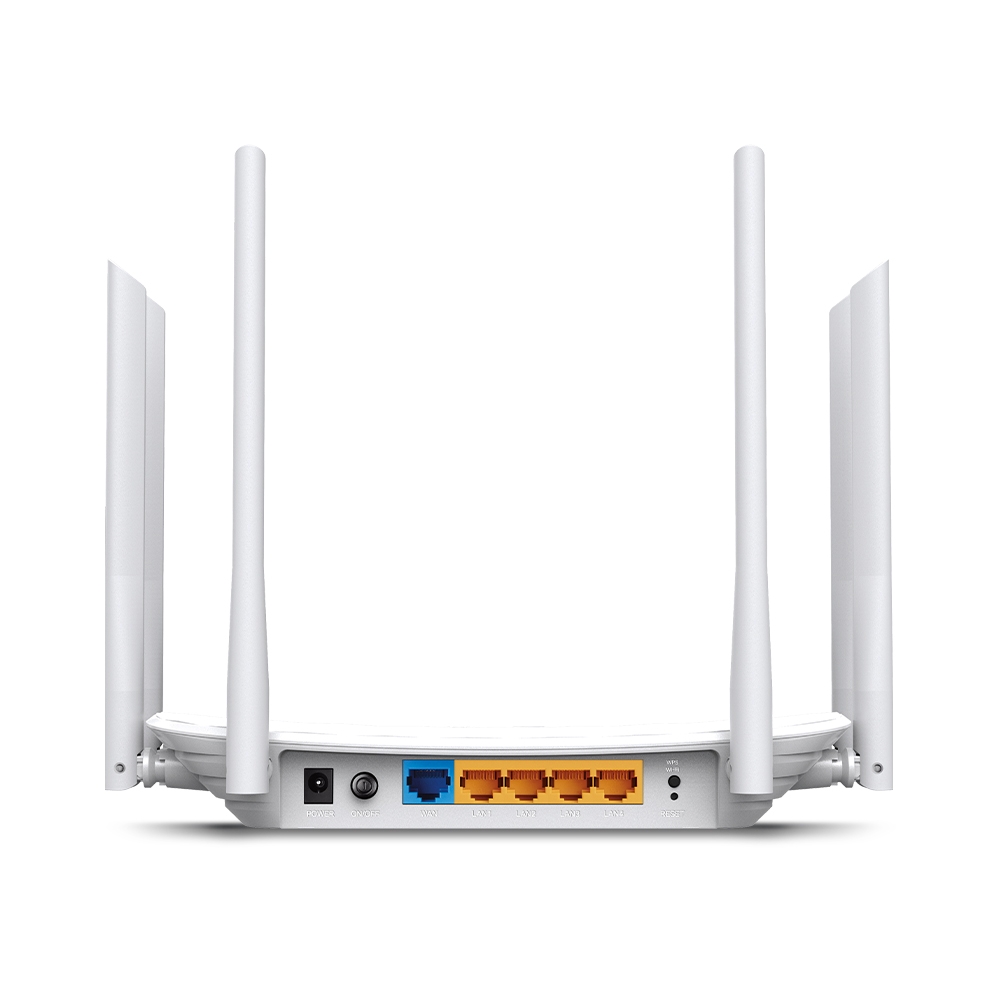

Puertos ethernet:1× Gigabit WAN Port
4× Gigabit LAN Ports
Botones:WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Energía US Version
12 V 1.5 A
EU Version
12 V 1 A
SOFTWARE
Protocolos:IPv4
IPv6
EasyMesh:Mesh networking creates smooth, fast, stable roaming. Archer C86 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.
Learn More
Controles parentales:URL Filtering
Time Controls
Tipos de WAN:Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Calidad de servicio:QoS by Device
Cloud Service:OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding:Port Forwarding
Port Triggering
DMZ
UPnP
IPTV: IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS
TP-Link
NO-IP
DynDNS
Gestión Tether App
Webpage
Check Web Emulator
OTRO
Requisitos del sistema:Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certificaciones FCC, CE, RoHS
Ambiente Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
DATOS DE PRUEBA
Potencia de transmisión WiFi CE:
20dBm(2.4GHz)
23dBm(5.15GHz~5.25GHz)
FCC:
30dBm(2.4GHz 5GHz)
Sensibilidad de recepción WiFi: 5GHz:
11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm
11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm
11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm
2.4GHz:
11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm
11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm
FÍSICO
Dimensiones (Al x An x Pr) 9.1 × 5.1 × 1.5 in
(229.9 × 144.2 × 37.2 mm)
contenidos del paquete:Wi-Fi Router Archer C86
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
