- Complies with ATX12 v2.52 EPS12 V2.92
Efficiency = 88% at typical Load
Active PFC = 0.9
Hold up time 17ms at 80% Load
+5V 3.3V DC to DC module design
+12V Single-Rail Design
120mm Silent long life Fan
Complete Protections: OCP/OVP/OPP/SCP

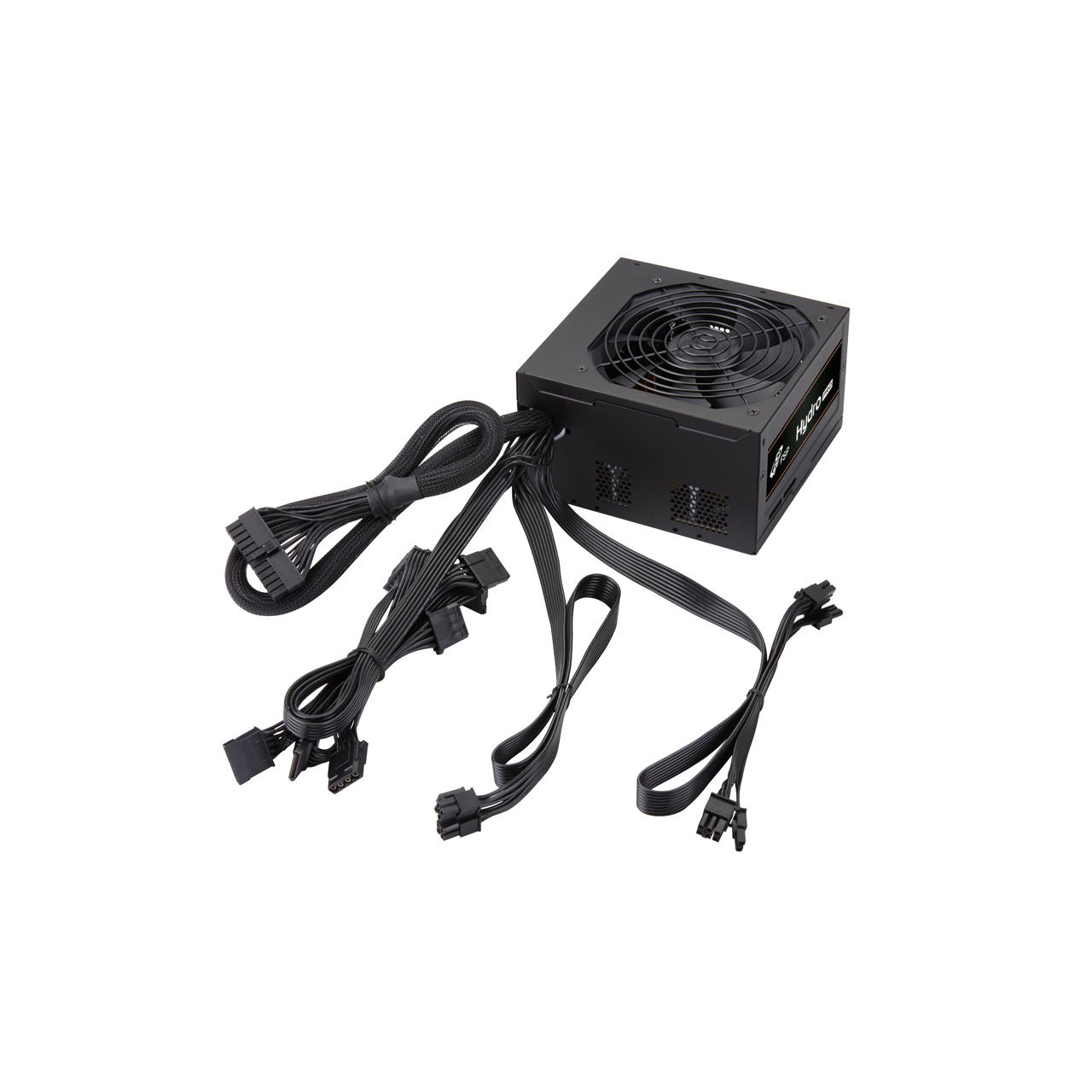

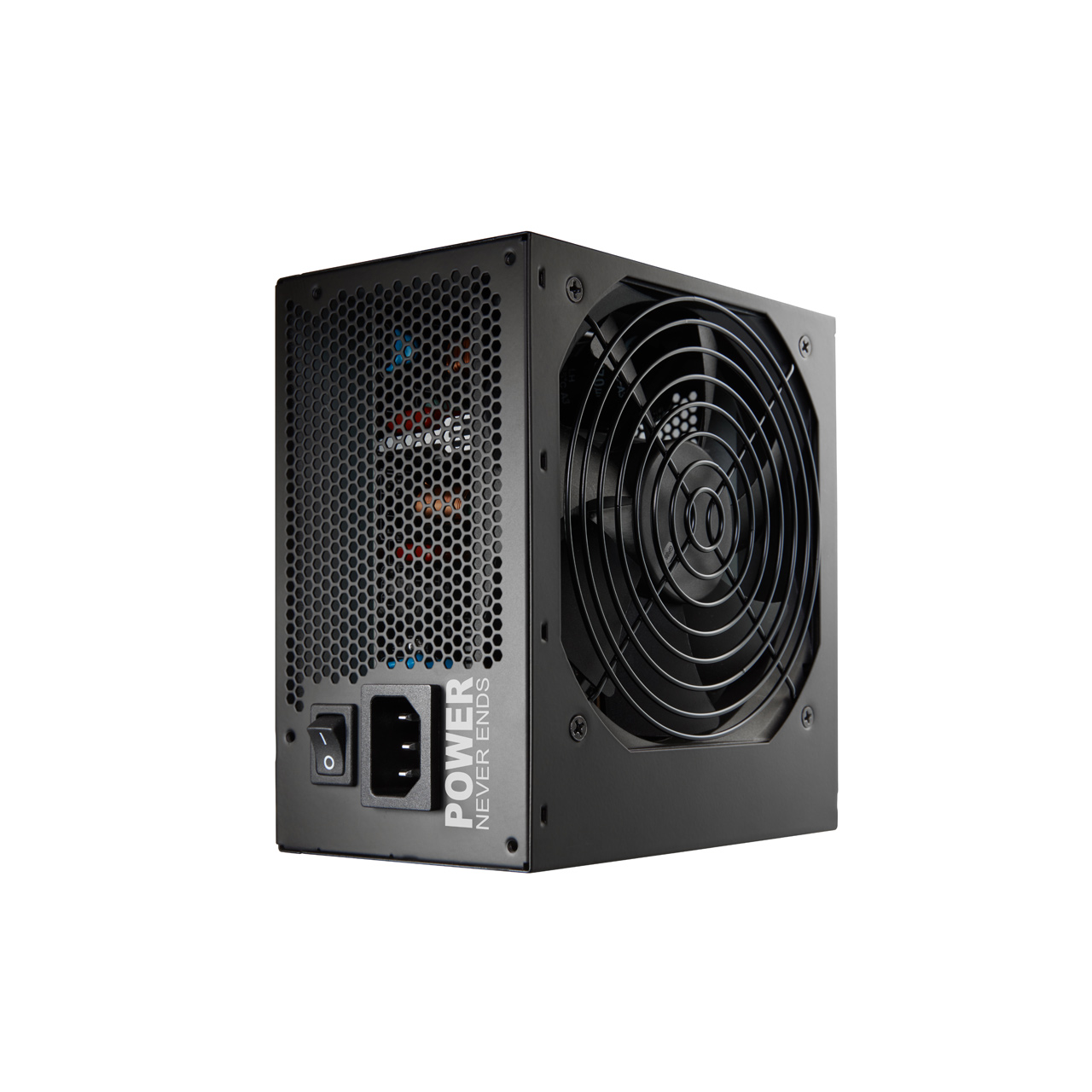

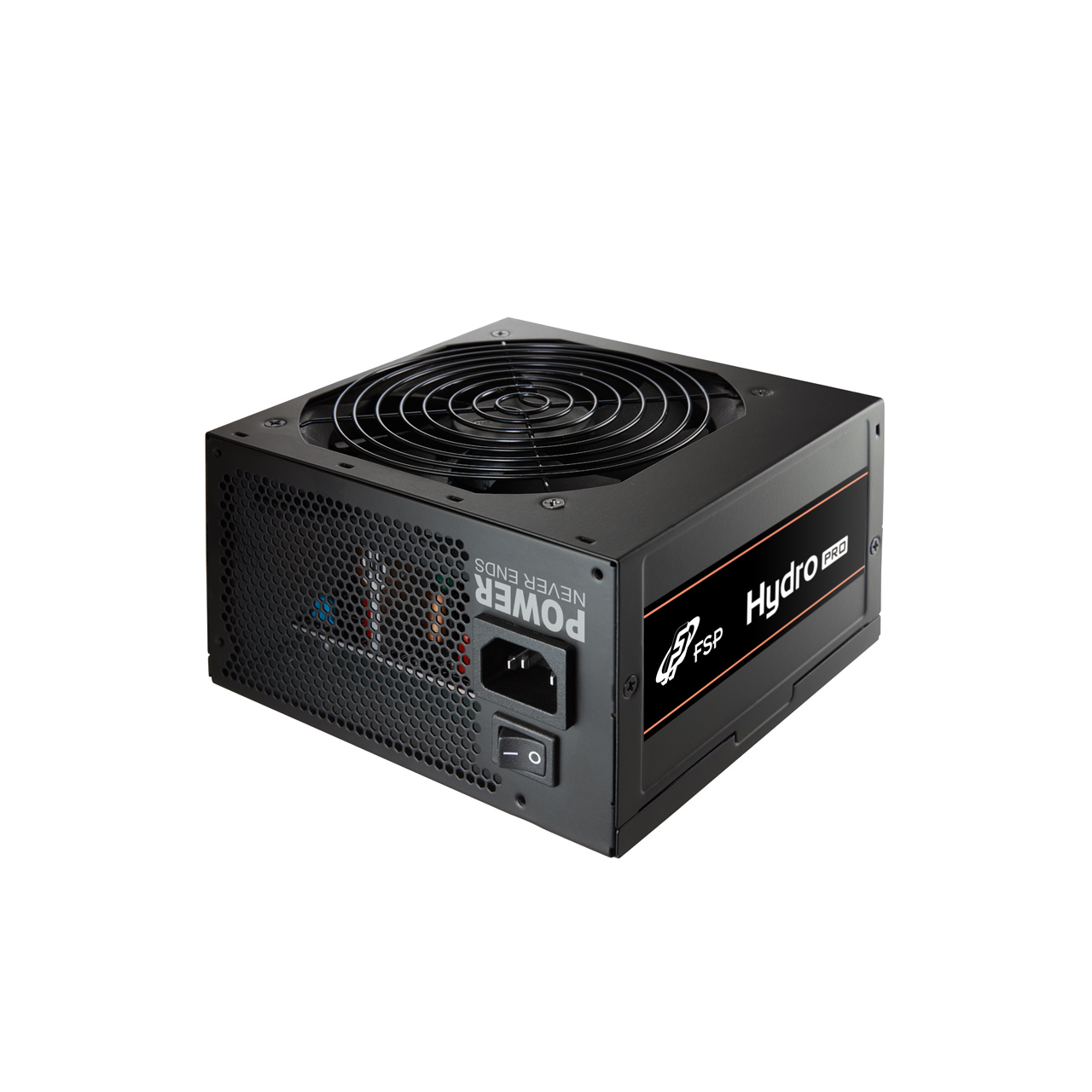

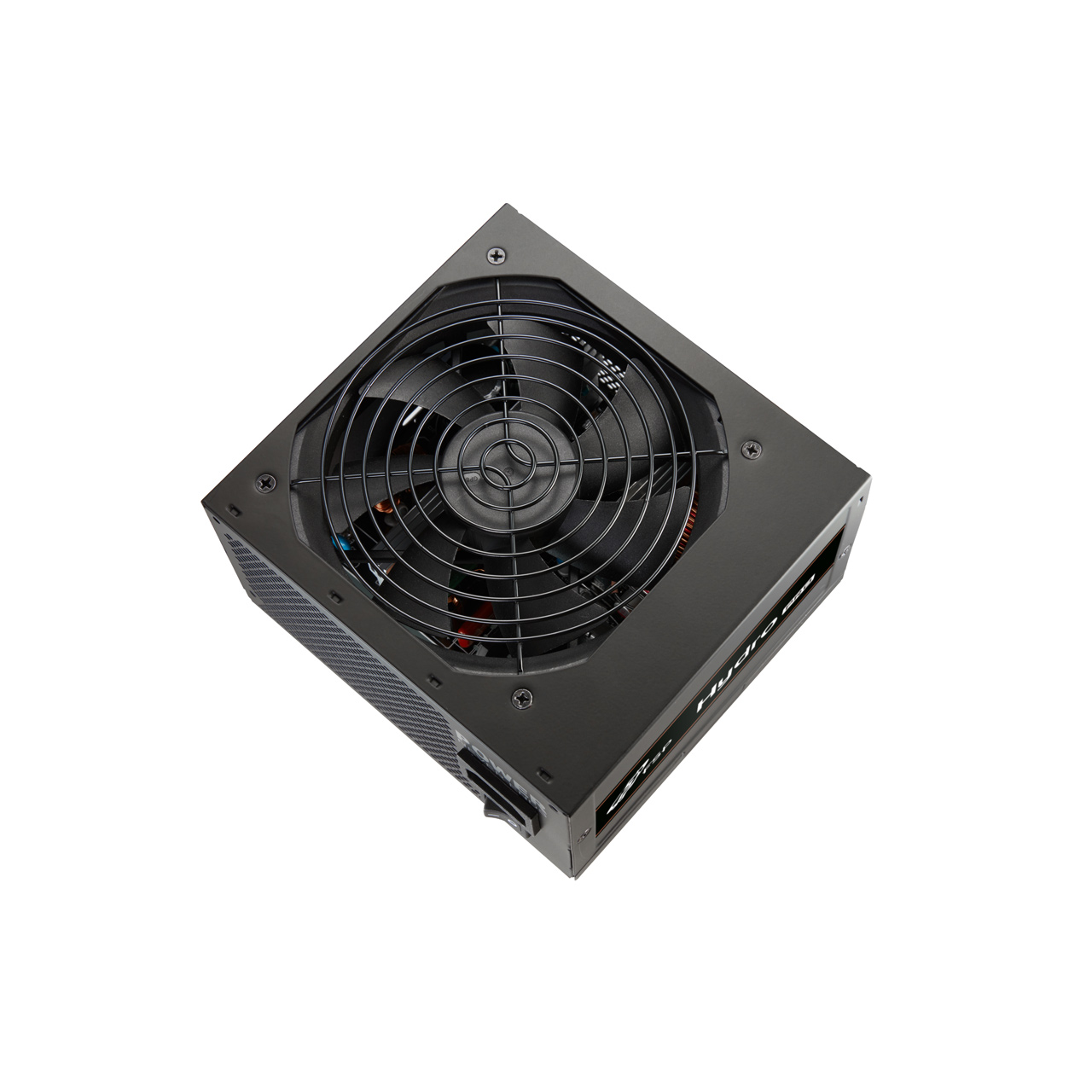

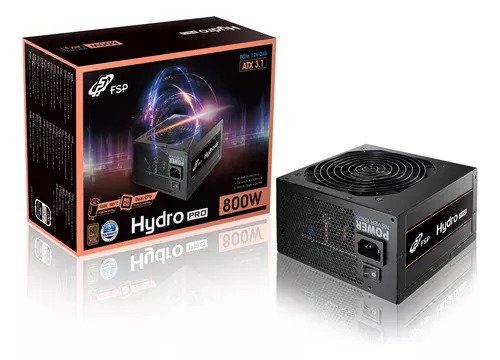

Model HP2-800
Rated Output Power 800W
Form Factor ATX
80 PLUS Certification Bronze 230V EU
Input Voltage 200V-240V
Input Current 6A
Input Frequency 50-60Hz
PFC Active
Efficiency = 88%
Fan Type Sleeve Fan
Dimensions(L x W x H) 150 x 140 x 86 mm
Weight 1.472kg
Protection OCP/OVP/OPP/SCP
