- Model

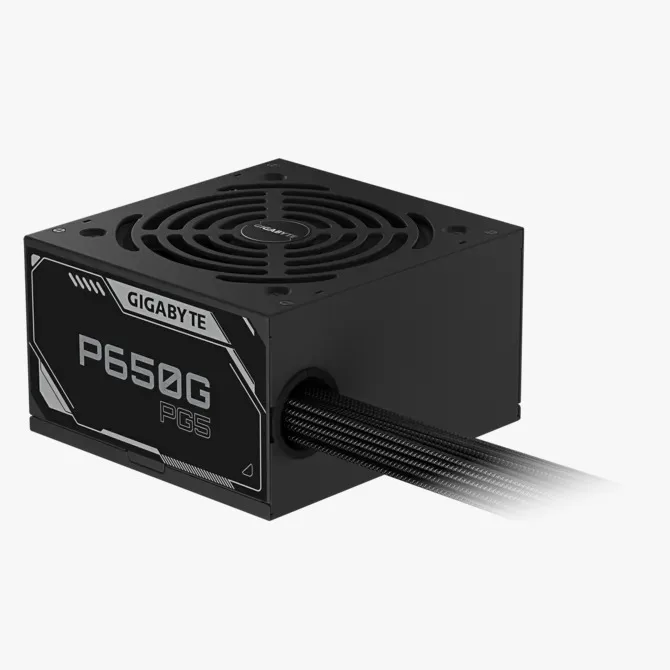

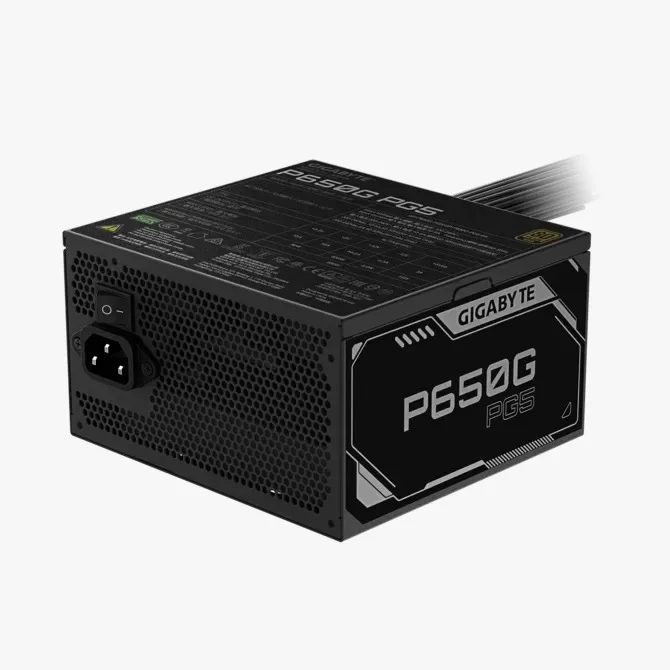

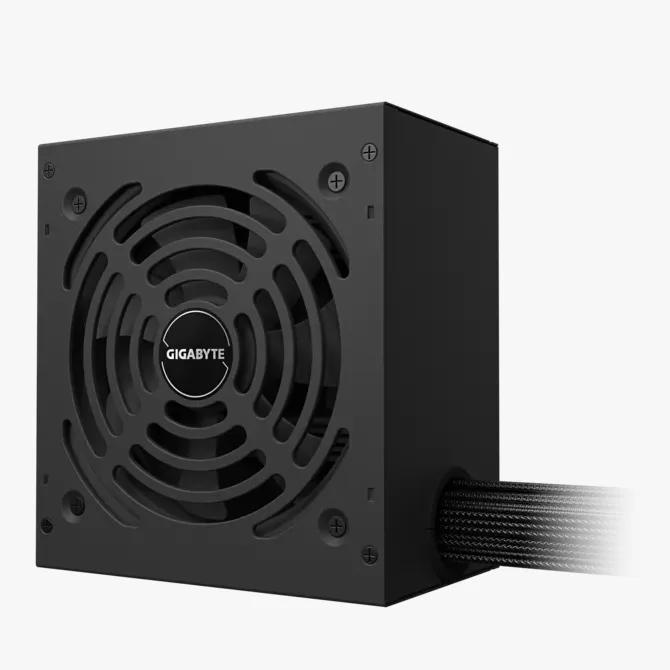

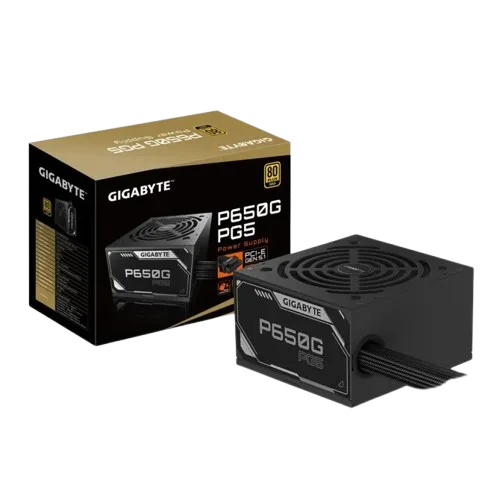

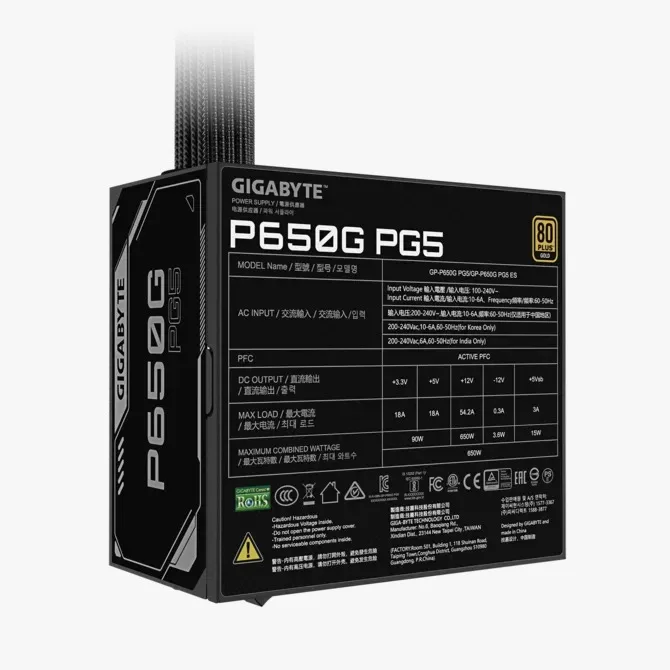

GP-P650G PG5
Type
Intel Form Factor ATX 12V v3.1
PFC
Active PFC(0.9 typical)
Input Voltage
100-240 Vac
Input Current
10-6A
Input Frequency
60-50 Hz
Output Capacity
650W
Dimension
150 x 140 x 86 mm
Fan Type
120mm HYB Fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
17ms
Cable Type
Embossed, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mmx1
CPU/EPS 4+4 Pin x 1 : 600mm + 150mmx1
PCI-e 16 Pin x 1: 500mmx1
PCI-e 6+2 Pin x 2 : 500mm+150mmx1
SATA x 6 : 420mm+150mm+150mmx2
4 Pin Peripheral x 3 : 420mm+150mm+150mmx1
