- Chipset
AMD Socket AM4, support for: AMD RyzenTM 5000 G-Series Processors/ AMD RyzenTM 5000 Series Processors/ AMD RyzenTM 4000 G-Series Processors/
AMD RyzenTM 3000 G-Series Processors/
AMD RyzenTM 3000 Series Processors
(Go to GIGABYTEs website for the latest CPU support list.)
AMD B550
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory Support for DDR4 4733(O.C.)/4600(O.C.)/ 4400(O.C.) / 4266(O.C.)/4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.)/3600(O.C.)/3466(O.C)/3400(O.C.)/3200/2933/2667/2400/2133 MT/s memory modules
Dual channel memory architecture
Memoria
Gráficos Integrados
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of Support 101 Displayrui 14 versioni, nuur 2.5, anu nun
- 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for native HDMI 2.1 TMDS compatible ports.
Audio
LAN
Wireless Communication module
Puertos de Expansión
(Graphics specifications may vary depending on CPU support.)
Maximum shared memory of 16 GB
Realtek ALC1220 CODEC
The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Realtek® Wi-Fi RTL8821CE
WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.0
- Support for 11ac wireless standard
(Actual data rate may vary depending on environment and equipment.)
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD RyzenTM 5000/3000 Series Processors support PCIe 4.0 x16 mode
AMD RyzenTM 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the
PCIEX16 slot.
Chipset:
Interfaz de Almacenamiento
- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD RyzenTM 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
AMD RyzenTM 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0
USB
x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
CPU:
4x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
2 x USB 3.2 Gen 1 ports available through the internal USB header
4x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1
x CPU fan header
2
x system fan headers
2
x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
Conectores Internos de 4 x SATA 6Gb/s connectors
E/S
1 x front panel header
1
x front panel audio header
1 x USB Type-CR header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash
Plus button
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)

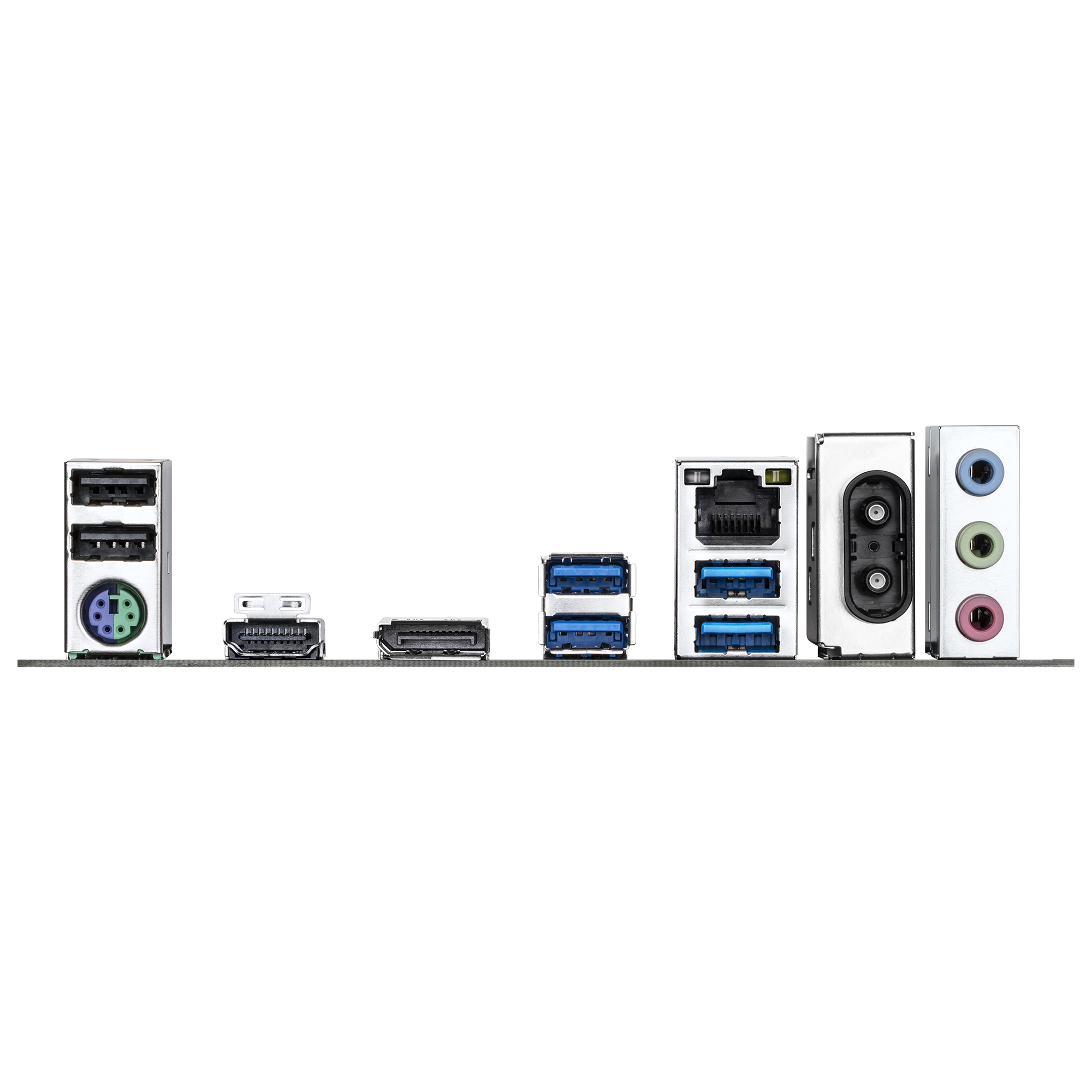

Conectores del Panel Trasero
Controlador de E/S
Monitorización H/W
1 x DisplayPort (Note)
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x antenna connectors
3 x audio jacks
(Note) Actual support may vary by CPU.
ITE I/O Controller Chip
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
Whether the fan speed control function is supported will depend on the fan you install.
1 x 128 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
Características Únicas
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
